API “The BOX” Operator’s Manual

3.5.2 Summing Input Insert Connections

All insert sends and returns are balanced, low-impedance, line-level signals routed via

¼” tip-ring-sleeve jacks on the rear panel.

The insert send is fed immediately after the input on summing inputs 1-16.

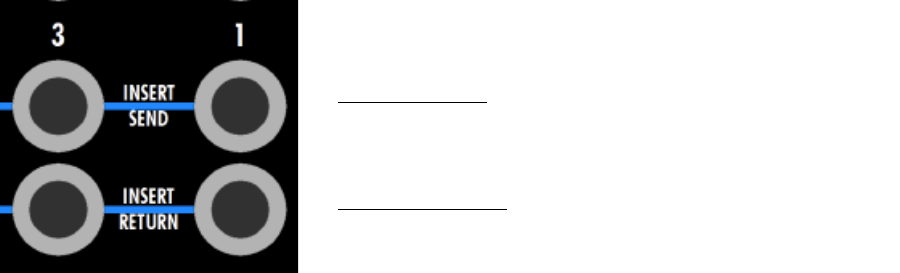

INSERT SEND: ¼” tip-ring-sleeve, balanced, low-

impedance, line-level

INSERT RETURN: ¼” tip-ring-sleeve, balanced, low-

impedance, line-level
